履帶式滑移裝載機

履帶式滑移裝載機TS100

發動機型號：WP4.1

額定功率：74/2200kW/rpm

額定載重：1200kg

排放標準：國三


  • 0538-8503798
  • 訂購咨詢

    • 參數外形圖

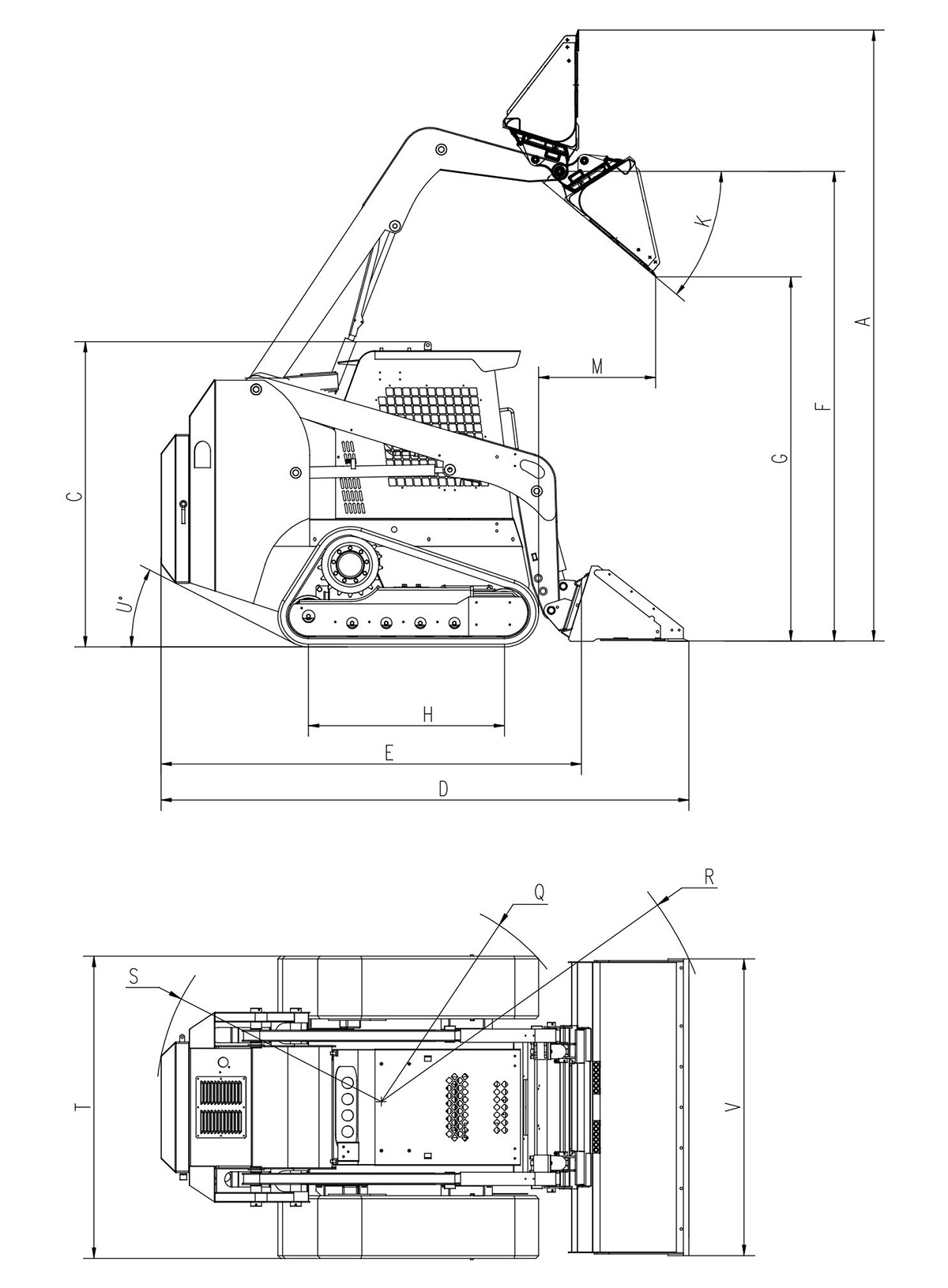

    履帶滑移外形尺寸圖_00

    性能參數

    		項目 ModelTS100
    工作性能

    Performance    		工作重量Operating weight（kg）4800
    額定載荷Rated load（kg）1200
    鏟斗容積 Bucket capacity（m3）0.6
    最大行駛速度 Max Speed（km/h）12/18
    最大牽引力Max traction（kN）>30
    最大崛起力Max breakout（kN）≥20
    動臂提升時間Lifting time of boom（s）7
    發動機

    Engine
    		制造商Manufacturer濰柴
    型號ModelWP4.1
    額定功率Rated power （kW/rpm）74/2200
    排量Engine displacement（L）4.088
    排放標準Emission Standard國三
    尺寸

    Dimension    		A. 最大操作高度Overall operating height （mm）4070
    B. 鏟斗銷高度Height to bucket hinge pin （mm）3150
    C. 駕駛室頂高度Height to top of cab （mm）2160
    D. 鏟斗至其底部的最大高度Height to bottom of level bucket（mm）2983
    E. 不帶鏟斗總長Without bucket length（mm）3000
    F. 帶鏟斗總長Overall length with bucket（mm）3795
    G. 最大高度卸載角度Dumping angle at maximum height（°）40
    H. 卸料高度Dumping height（mm）2450
    I. 卸載距離Dumping reach（mm）700
    J. 鏟斗在地面的反轉角度Rollback of bucket on ground（°）30
    K. 鏟斗在最高時翻轉角度Rollback of bucket at full height（°）104
    L. 軸距Wheelbase（mm）1500
    M. 離地間隙Ground clearance（mm）200
    N. 離去角Angle of departure（°）20
    O. 不帶鏟斗時轉彎半徑Front turning radius without bucket（mm）1365
    P. 前轉彎半徑Front tuning radius（mm）2439
    Q. 后轉彎半徑Rear tuning radius（mm）1617
    R. 尾部長度Rear axle to bumper （mm）938
    S. 輪距（標準輪胎）Tread width （mm）1654
    T. 車寬（標準輪胎）Width (mm)1994
    U. 帶標準鏟斗寬度Bucket width （mm）2030
